CEF vervang impeller Johnson

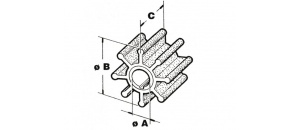

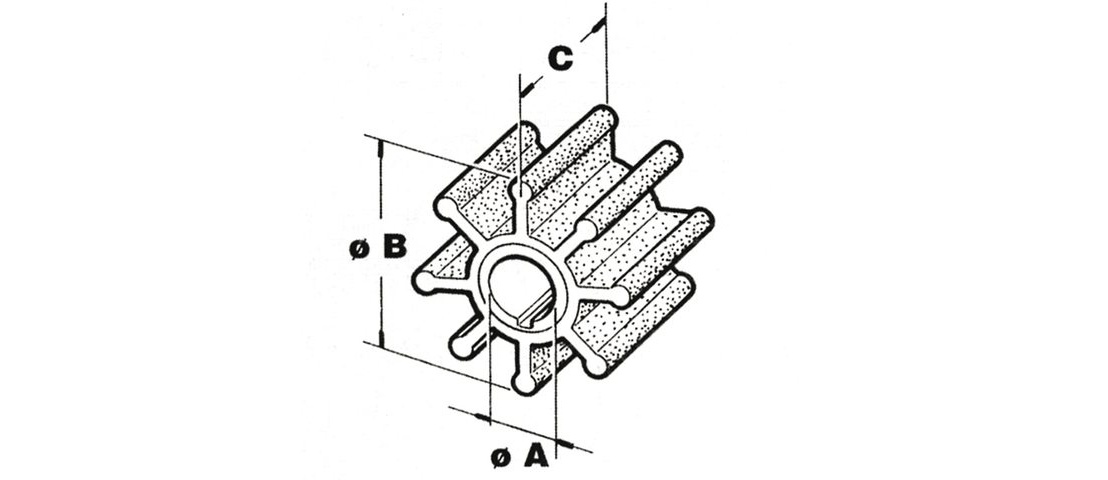

| Art.code | Origineel nr | Type asgat | Bladen | ØA mm | ØB mm | C mm | Meegeleverd | |
|---|---|---|---|---|---|---|---|---|
| CEF500116 | 09-1026B | Pin Drive | 6 | 12.66 | 50.8 | 22.1 | pakking+bout | |
| CEF500107 | 09-1027B | Spline Drive | 12 | 14.29 | 57 | 31.6 | pakking+kap | |
| CEF500106 | 09-1028B | Spline Drive | 8 | 14.29 | 65 | 50.2 | pakking+kap | |
| CEF500105 | 09-1029B | Spline Drive | 9 | 22.5 | 96 | 63.1 | pakking+kap | |
| CEF500115 | 09-802B | Spline Drive | 9 | 22.5 | 95 | 88.5 | kap | |
| CEF500100 | 09-806B | Pin Drive | 6 | 9.54 | 39.6 | 18.94 | pakking+bout | |
| CEF500121 | 09-808B | Pin Drive | 6 | 12 | 39.6 | 19.2 | pakking+bout | |
| CEF500101 | 09-810B | Pin Drive | 6 | 12.17 | 50.8 | 22.1 | pakking+bout | |
| CEF500124 | 09-812B | Spline Drive | 12 | 14.29 | 57 | 48.2 | ||
| CEF500145 | 09-814B | Spline Drive | 12 | 22.5 | 95 | 88.5 | pakking+kap | |
| CEF500135 | 09-819B | Spline Drive | 12 | 22.5 | 95 | 63.1 | kap | |
| CEF500162 | 09-821B | Spline Drive | 12 | 22.5 | 65.8 | 80 | pakking | |
| CEF500138 | 09-824P | Single Flat | 6 | 7.31 | 51.3 | 22 | ||
| CEF500185 | J09-838S | 11 | 25.4 | 94 | 63 |
